Key Features
5G Cellular
Built-in Qualcomm™ SDX55 modem, it has best 5G mobile network performance and works with integrated world-wide
5G to 2G multi-mode.
Wi-Fi 6 (802.11ax)

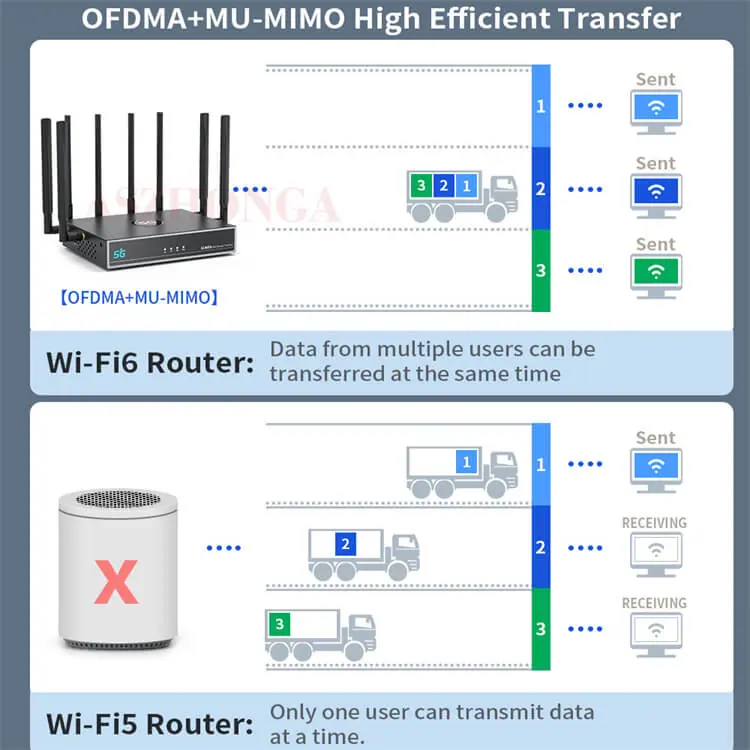

The revolutionary Wi-Fi technology with OFDMA and DL MU-MUMI, faster wireless line，more client connection, lower
latency, best network efficiency.
Higher Wireless Capacity
Dual-band 4 spatial streams, the CPE outputs 1800Mbps wireless bandwidth (600 + 1200), makes you peace of mine
while enjoy UHD videos, online games at the home rush hours. It’s the future-proof investment absolutely.
Hybrid MESH+ Networking
The CPE inherits the mesh technology and supports “wired / wireless” hybrid networking. It’s so convenient to cover all
corners and dead-zones by adding one more MESH+ node (another series of router). it improves the deployments of
wireless network and optimized the seamless feature.
|
5G Cellular
|
|
1) 5G Baseband: Qualcomm® Snapdragon™ X55 Modem-RF System
|
|
2) 5G Network Modes: SA (standalone), NSA (non-standalone)
|
|
3) 5G NSA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
|
|
4) 5G SA Bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79
|
|
5) 5G Standards:3GPP Release 15
|
|
6) 5G SA Transmission Speed:2.1Gbps/900Mbps (up to ISPs)
|
|
7) 5G NSA Transmission Speed:2.5Gbps/650Mbps (up to ISPs)
|
|
4G Cellular
|
|
8) LTE Category:Down Cat 16/ UP Cat 18
|
|
9) LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
|
|
10) LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48
|
|
11) LTE Down 4 × 4 MIMO:B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/B39/B40/B41/B42/B43/B48/B66
|
|
12) WCDMA:B1/B2/B3/B4/B5/B8/B19
|
|
13) LTE : Down 1.0 Gbps;UP 200 Mbps
|
|
WiFi6 Datasheet
|
|
WiFi 6(802.11ax)
|
|
1) Working Radio: #1: 600Mbps @ 2.4GHz; #2: 1200Mbps @ 5.1-5.8GHz
|
|
2) Coding Technology:1024-QAM / OFDMA
|
|
3) Peak Connections:>100+ Clients
|
|
4) Wi-Fi Standard Conformance:WiFi6 and 802.11ac / 802.11n backward
|
|

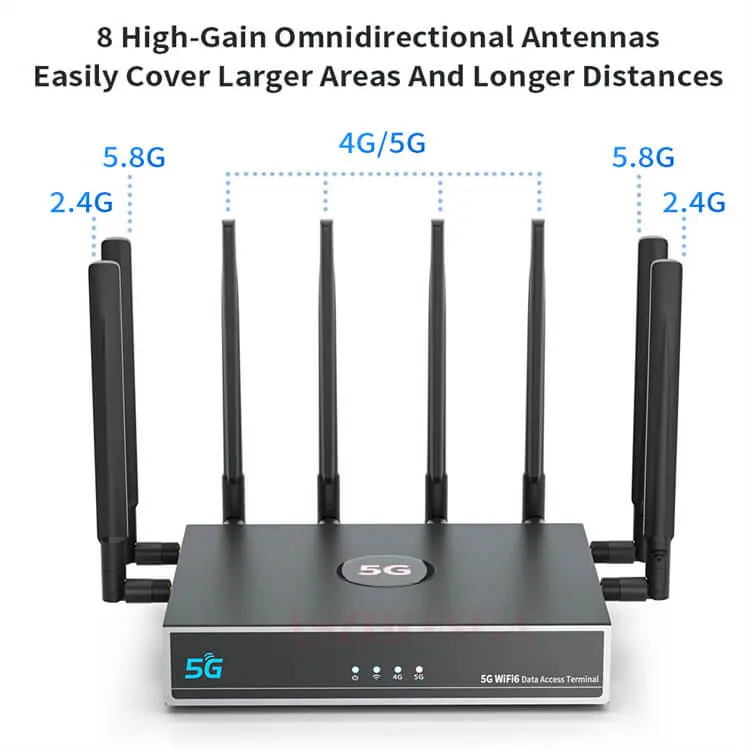

5) Antenna: external 4 pcs high performance antennas with 4 pcs FEM components.
|
|
Data Switching
|
|

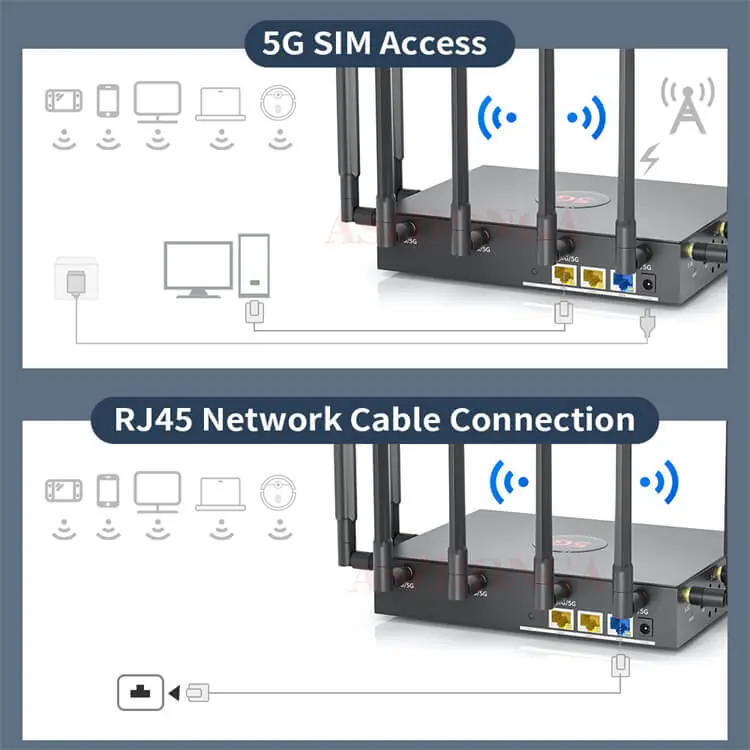

1) Mobile 4G/5G Connection (Support APN)
|
|
2) Giga Ethernet Connection
|
|
3) MESH:MESH+ hybird
|
|
4) 2.4G/5Ghz WiFi
|
|
5) Advanced Firewall
|
|
6) MAC Filter
|
|
7) WiFi Sercurity
|
|
8) VPN Passthrough and VPN Client (L2TP PPTP)9) IPV4/IPV6
|
|
10) WEB / APP Mangement
|
|
11) Firmware upgrade
|
|
Hardware Specification
|
|
1) CPU: MT7621AT
|
|
2) Memory:16MB Flash + 256MB DDR3
|
|

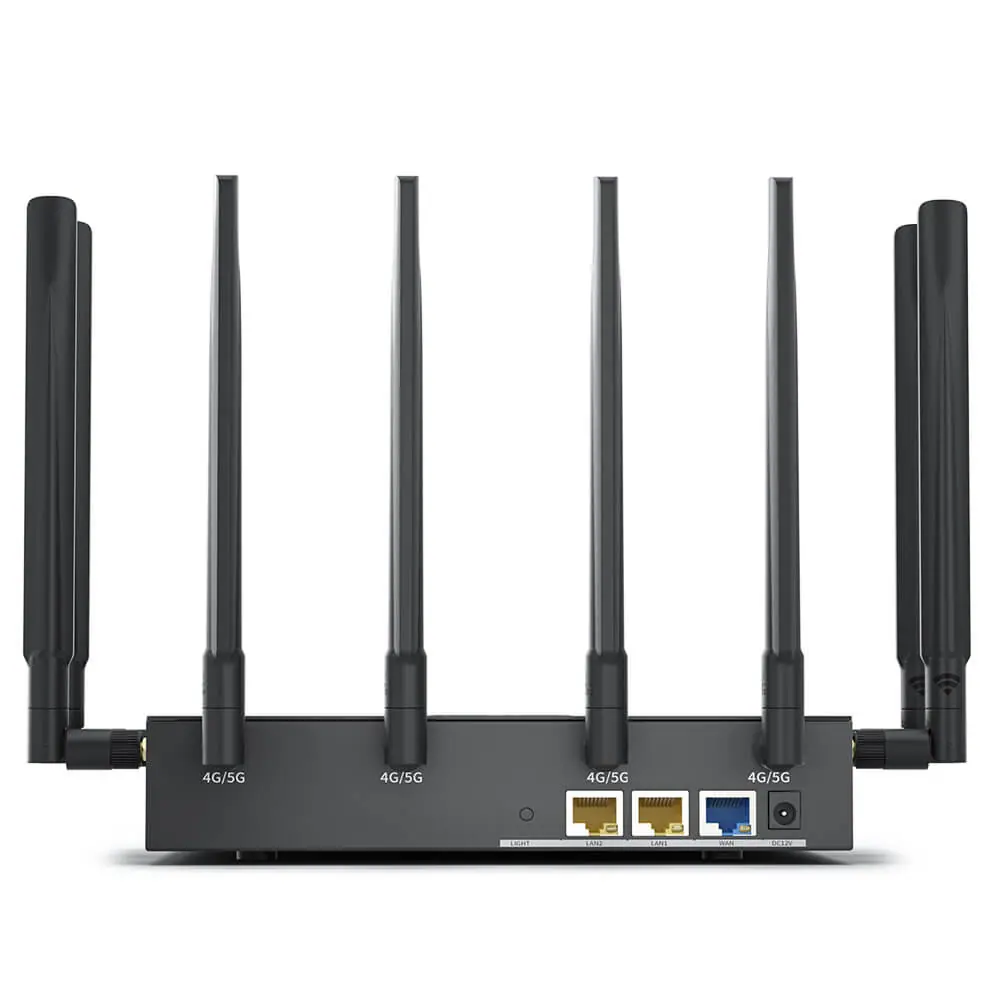

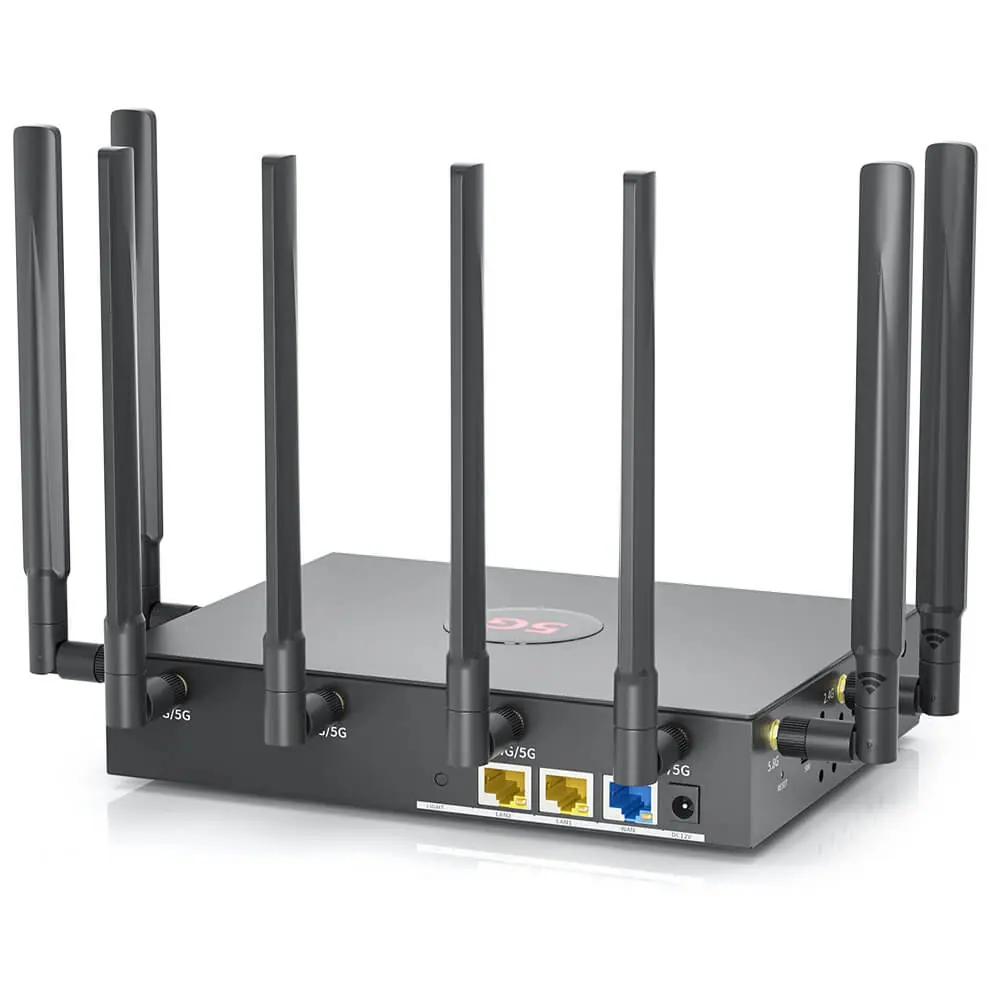

3) Ethernet:1*1Gbps WAN,2*LAN 1Gbps
|
|

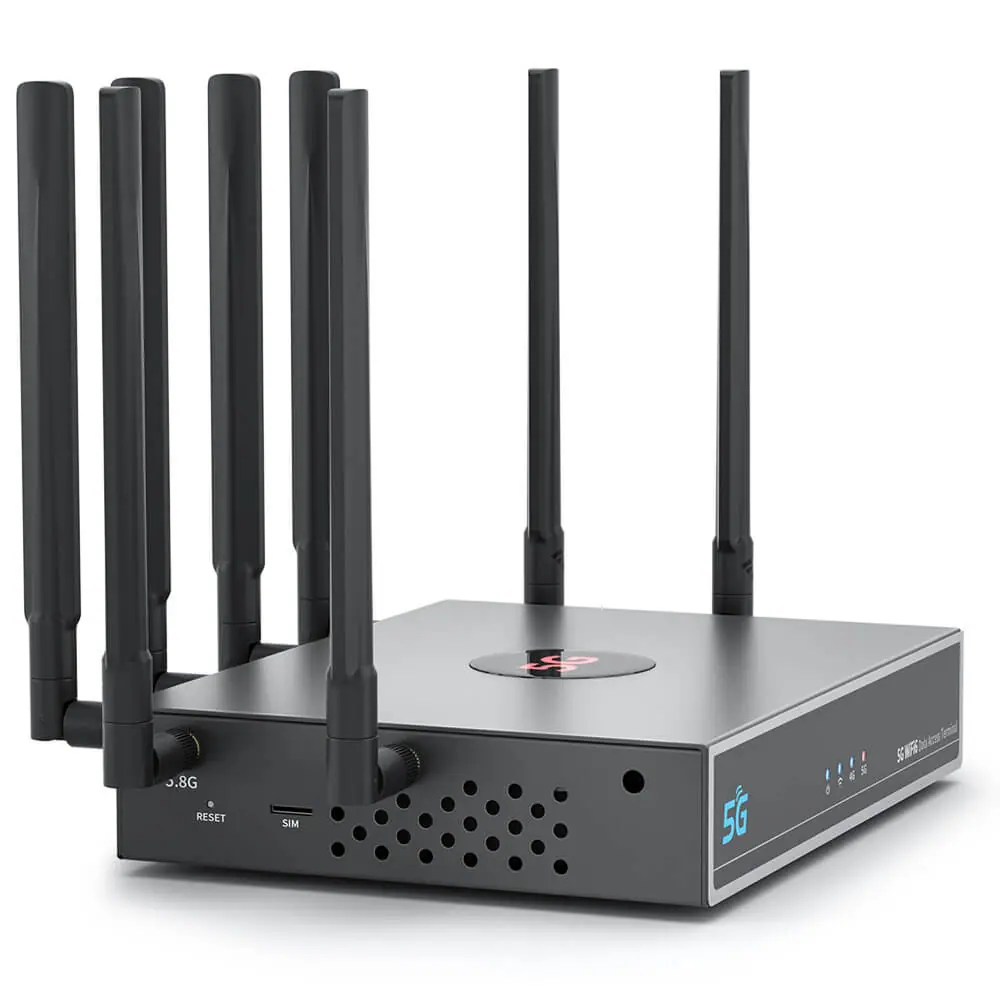

4) 1* SIM Slot(Nano-SIM)
|
|
5) Reset button
|
|
6) MESH+ Button
|
|
7) MESH+ LED Switch
|
|
8) LED Indicator
|
|
– MESH+ Working Status (breathing light)
|
|
– 4G Status
|
|
– 5G Status
|
|
– WiFi Status
|
|
– Power Status
|
|
（9) General
|
|
– Power Consumption:<20W
|
|
– DC Power Supply: 12V/2A
|
|
– Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃
|
|
– Humidity:5%~95%
|
|
– Weight: 0.69kg（N.W.）
|
