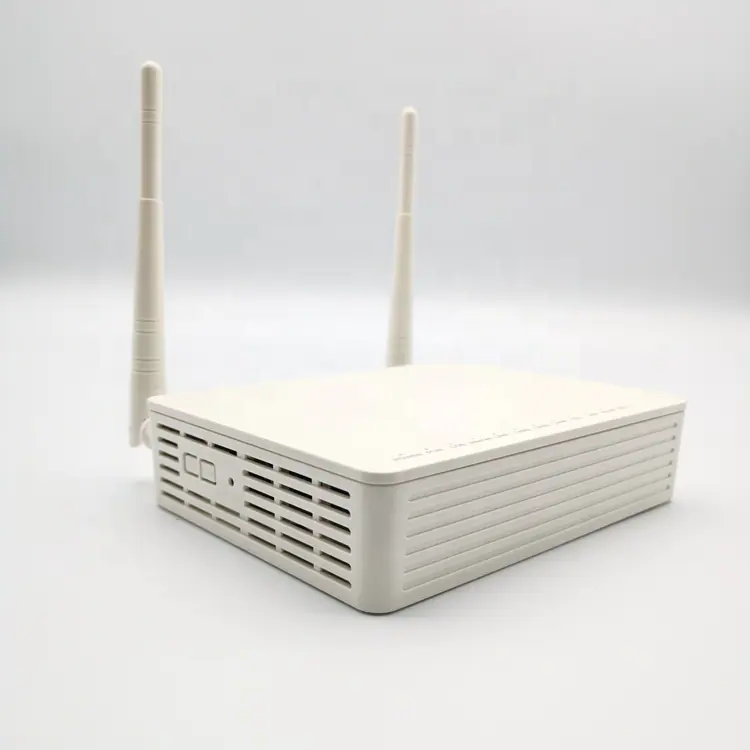

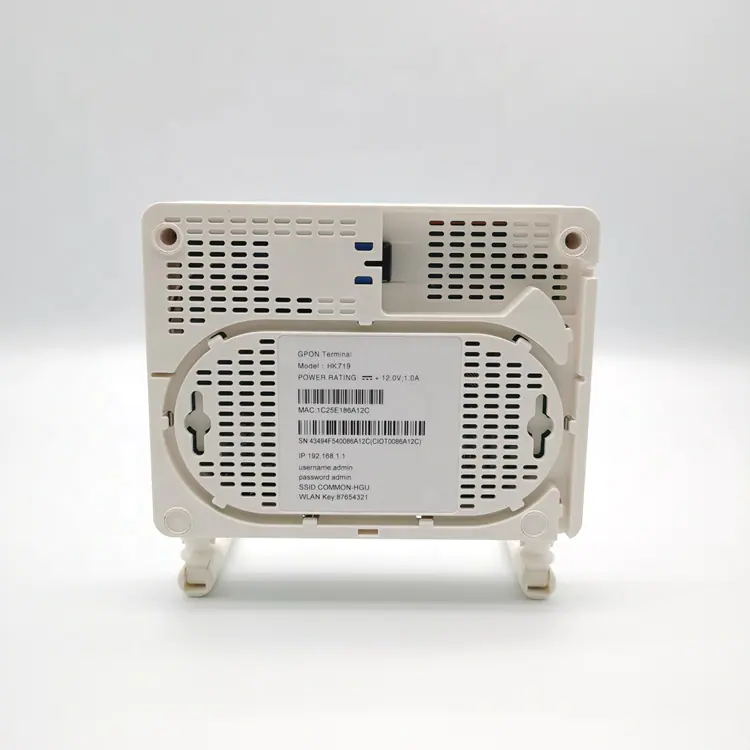

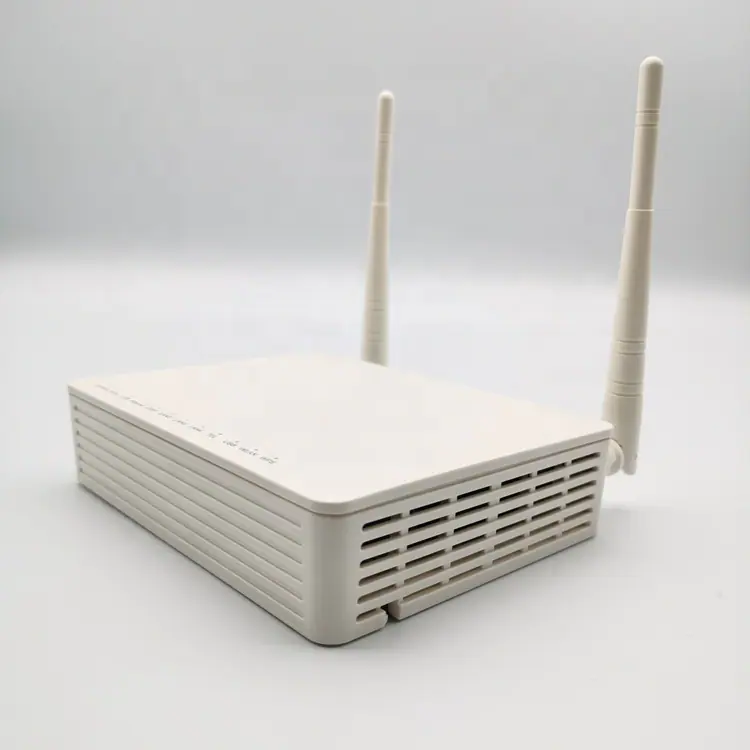

HK719 is An integral part of hongking Fiber To The Home (FTTH) solution, is an indoor Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to provide ultra-broadband access for home and Small Office/Home Office (SOHO) users.
The HK719 Adpot chipset , It has 1GE 3FE 1TEL 1USB 2.4ghz WiFi Ports and features high-performance service forwarding capabilities, ensuring excellent Internet and High Definition (HD) video service experience.
Specifications
Parameters | ZTE Chipset HK719 |
Dimensions (H x W x D) | 138 x 95 x 35 mm |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 5% RH to 95% RH (non-condensing) |
Power Adapter Input | 100 V to 240 V AC, 50 Hz/60 Hz |
System Power Supply | 11 V to 14 V DC, 1 A |

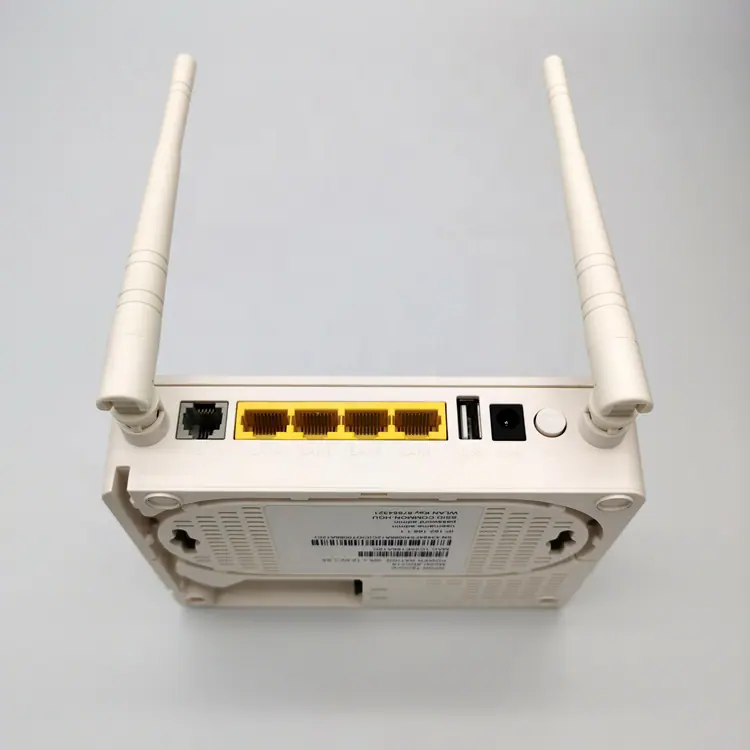

Network-Side Ports | 1GE 3FE 1TEL 1USB 2.4ghz WiFi |
User-Side Ports | 1 x GE |

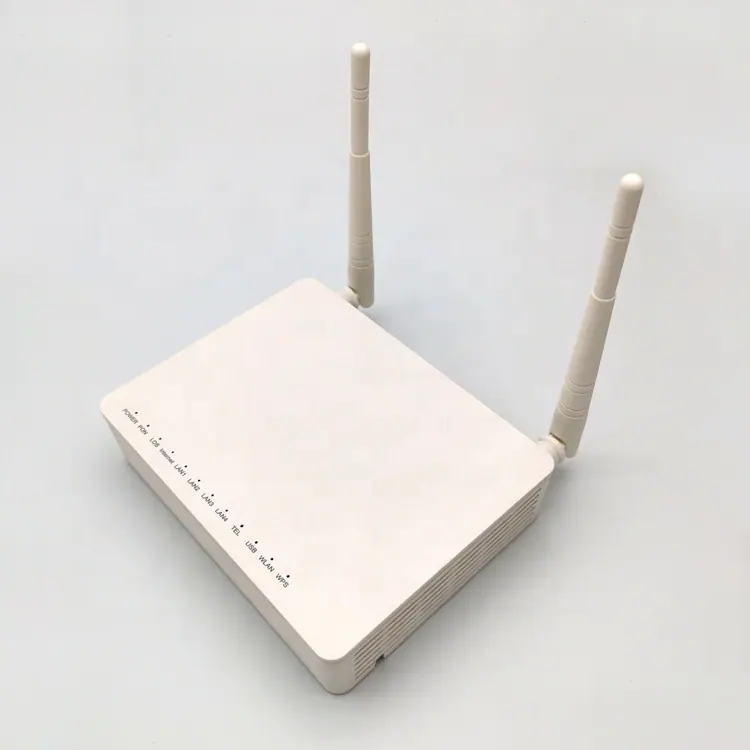

Indicators | Power/PON/LOS/LAN/TEL |
Features
Plug-and-Play
Configurations are automatically delivered by the Network Management System (NMS), eliminating the need for on-site commissioning.
Comprehensive Triple Play Service
Abundant ports available to implement multiple access services, including home network attached storage, Internet access, and video.
Energy Efficient
System on Chip (SoC) integrate PON, gateway, and LAN Switch (LSW) modules, realizing up to 25% power savings.
-
