FTTH suspension clamp for adss cable
- Flame Retardant LSZH jacket is applied
- ITU-T G.657 fiber is available
- Available from 1 to 8-fiber counts

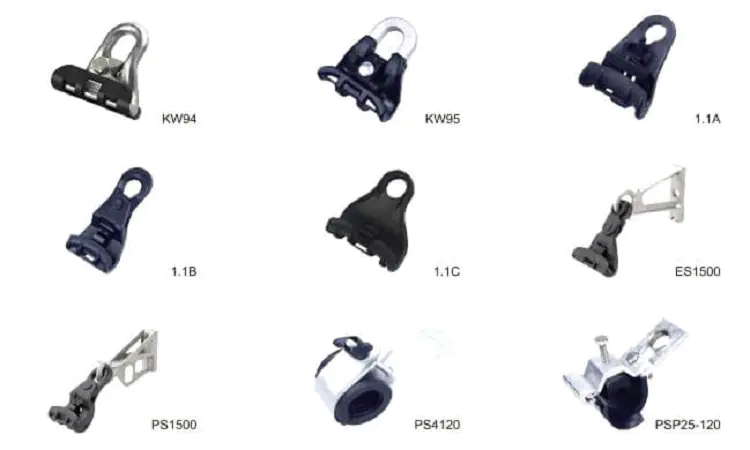

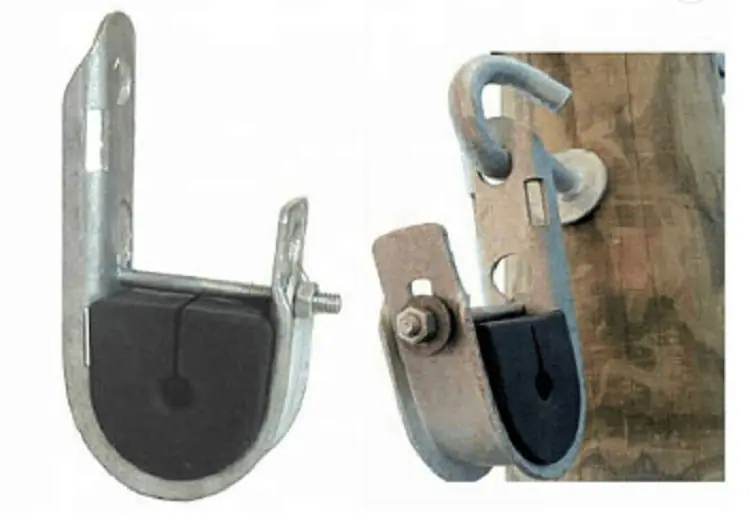

Suspension clamp,Use for ADSS cable,choose the type according to the diameter of ADSS cable.The ADSS suspension clamp is used for the direct suspension of round fiber optic ADSS cables with Ø6 to 15mm on short spans (max 150m) at intermediate poles on straight routes.choose the type according to the diameter of ADSS cable.
– Suitable for indoor or duct application
– Easy jacket removal without special tools
– Self-support structure
– Excellent crush and impact resistance
– Flame Retardant LSZH jacket is applied
– ITU-T G.657 fiber is available
– Available from 1 to 8-fiber counts
Applications
1. Used in access network or as access cable from outdoor to indoor in customer premises network;
2. Used as access building cable in premises distribution system, especially used in indoor or outdoor
Fiber Parameters
|
No. |
Items |
Unit |
Specification |
|
|
G.657A1 |
||||
|
1 |
Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 | ||
|
2 |
Cladding Diameter | μm | 124.8±0.7 | |
|
3 |
Cladding Non-Circularity | % | ≤0.7 | |
|
4 |
Core-Cladding Concentricity Error | μm | ≤0.5 | |
|
5 |
Coating Diameter | μm | 245±5 | |
|
6 |
Coating Non-Circularity | % | ≤6.0 | |
|
7 |
Cladding-Coating Concentricity Error | μm | ≤12.0 | |
|
8 |
Cable Cutoff Wavelength | nm | λcc≤1260 | |
|
9 |
Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 | ||
|
10 |
Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
| 1turn×10mm radius@1625nm | dB | ≤1.5 | ||
Cable Parameters
|
Items |
Specifications |
|
| Fiber Count | 4 | |
| Colored Coating Fiber | Dimension | 250±15μm |
| Color | Blue, Orange, Green, Brown | |
| Strength Member | Dimension | 0.5mm |
| Material | FRP | |
| Self-Supporting Member | Dimension | 1.0mm |
| Material | Steel Wire | |
| Jacket | Dimension | 5.2±0.2mm×2.0±0.1mm |
| Material | LSZH | |
| Color | Black | |
Packaging & Shipping
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available
Inner packing: 1pcs in a carton
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS …
Foclink,established in 2015 and located in Shenzhen city, is a supplier in telecom field, specializing in sell & research and developing fiber optical communication equipment. The main products, including indoor and outdoor fiber optic cable,fiber patch cord, fiber connector, fiber fast connector, fiber adapter, fiber splitter, fiber attenuator, fiber media converter, fiber splice closure, fiber terminal box, fiber patch panel, ODF, CWDM / DWDM / FWDM wavelength division multiplexer, SFP modules, FTTH tools kit etc, are widely used in telecommunication, broadband, broadcast, CATV and network industries.
Nowadays our operation factory area is about 2000 square meters. The production capacity of fiber optic connectors is about 600,000pcs per month. Quality is controlled constantly and strictly in order to give the best products to the end users. The outstanding features are high technology, professional and good sales teams, efficient management, competitive prices, wide and superior channels, as well as flexible service.
Dedicated to strict quality control and supreme customer service, our experienced staff members are always available to discuss your requirements and ensure full satisfaction. All ensure the reliability and products with high performance are very popular not only in the domestic markets,but also the overseas markets
